Fully automatic horizontal wrapping flow pack packing machine Energy bar packaging machine
Contact Person : Manager
Phone Number : +8613818681174
WhatsApp : +8613818681174
|Minimum Order Quantity :||1||Price :||Negotiable|
|Packaging Details :||Fumigation-free wooden box||Delivery Time :||7 days|
|Payment Terms :||T/T, L/C, D/A, D/P, Western Union, MoneyGram||Supply Ability :||10pics/month|
|Place of Origin:||China||Brand Name:||ipapa|
|Name:||Full Automatic No Empty Bag Flow Wrapping Machine||Power (kw):||3KW|
|Size (L*W*H Mm):||3400*830*1350||Packing Speed (bag/min):||35-150|
|Packaging Film Width (mm):||90-240||Sealing Pressure (Newton/mm2):||15|
|Packaging Film Material:||OPP、PE、PVC、OPP/CPP、PT/PE、KOP/CPP、Aluminum Film Etc.|
Chocolate Bar Flow Wrapping Machine,
Automatic Flow Wrapping Machine,
Flow Wrap Packaging Machine

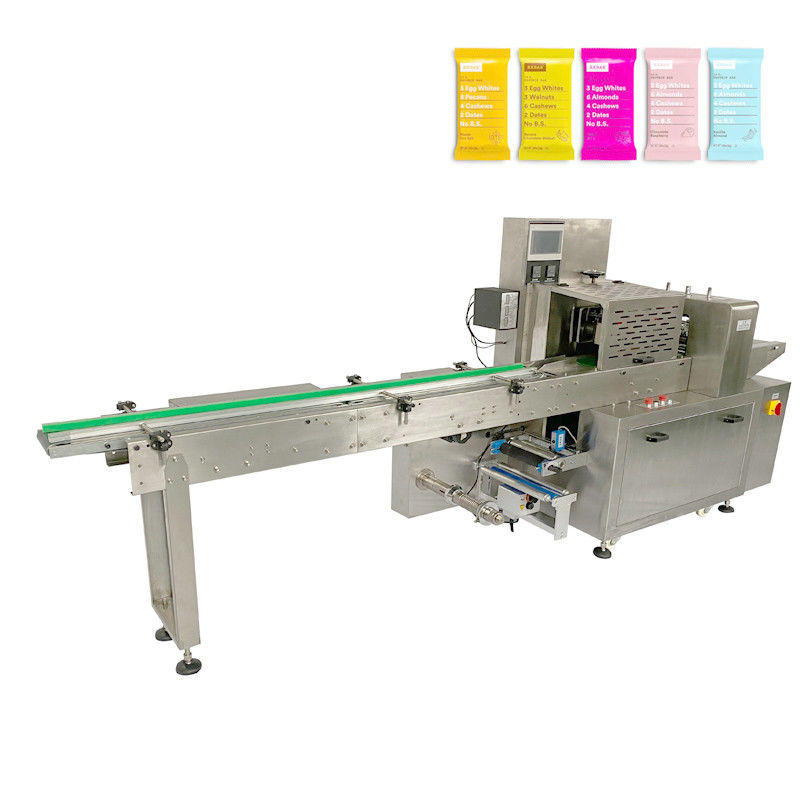

Full automatic chocolate bar flow wrapping machine
Full automatic chocolate bar flow wrapping machine is a horizontal packing machine, also called pillow-type packing machine because the shape of the finished bag is pillow-like. The machine has good stability, low maintenance cost can be used continuously, and is famous for its high cost performance. No manual intervention is required in the whole packaging process, the packaging process is safe and reliable, and the degree of automation is high.
Flow wrapping machine(film downside wrapping)
1) The main control circuit adopts inverter control, PLC touch screen display, and provided the good interface of person and machine. The machine operation is concentrated and intuitive;
2) The whole machine adopts dual frequency converter control, wide frequency conversion range, large speed adjustment range, which permits stepless variation. Packaging speed can be set by the production speed of the production line, and the matching is perfect.
3) After setting the packaging film length and the packing bag length, they are automatically controlled and tracked by a high-sensitivity electric eye. The bag length is accurate and not need to adjust by manual.
4) Each sealing temperature is independently controlled, suitable for a variety of packaging materials, and the sealing is beautiful and firm.
5) The printer can be configured according to the needs of users, so that the printing of production date, production batch number, etc. can be synchronized with the packaging..
|Specifications and technical parameters||
Packing speed (bag/min)
|Packaging film width (mm)||
|Bag size (mm)||Length(flat bag)||
|Total power (kw)||
|Main motor power (kw)||
|Heating power (kw)||
|Machine net weight (kg)||
|Machine dimensions (length * width * height) (mm)||
|Machine noise (dB)||
|Qualified rate of bagging (percentage)||
|Sealing pressure (Newton/mm2)||
|Packaging film material||OPP,PE,PVC,OPP/CPP,PT/PE,KOP/CPP,Aluminum film etc.|
Papa Industrial mainly uses the flow wrapping machine to pack snack bars, PA250 model is the ideal protein bar wrapping machine, snack bar wrapping machine, fruit bar wrapping machine, candy bar wrapping machine, cereal bar wrapping machine, chocolate bar wrapping machine, and granola bar packaging machine, Papa Industrial also uses the flow wrapping machine to pack cookies and maamouls. No matter a flow wrapping machine or a fully automatic flow wrapping production line, Papa Industrial can provide you turnkey solution for food packaging ! Weclome to contact us for more information !
