P401 large scale nutrition bar cutting machine

Minimum Order Quantity : 1 set Price : Negotiate
Packaging Details : Fumigation-free wooden box Delivery Time : 15-30 working days
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 2 sets/month
Place of Origin: CHINA Brand Name: iPAPA
Certification: CE Model Number: P401

Detail Information

Capacity: 100-250KG/H Power: 5kw
Weight: 1200KG Voltage: 380V, Three Phase
Dimention: 4800*920*1200mm Cooling Type: Cooling Fans
Material: Stainless Steel 304 Warranty: 1 Year
After-sales Service Provided: Engineers Available To Service Machinery Overseas Condition: New
Application: Granola Bars, Cereal Bars, Muesli Bars, Peanut Bars,rice Bars, Etc.

Product Description

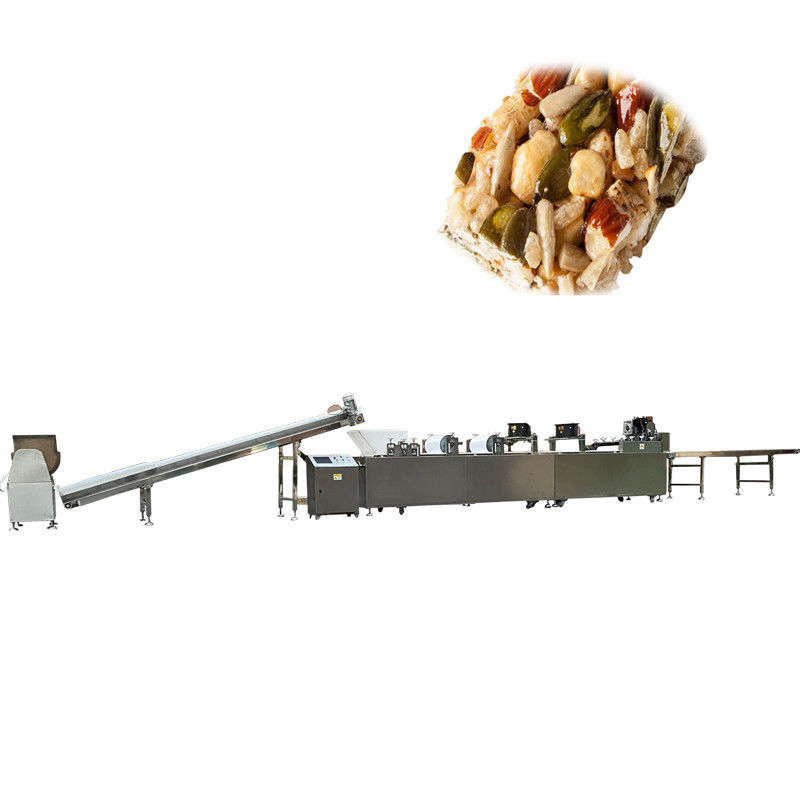

P401 large scale nutrition bar cutting machine


Description:



P401 large scale nutrition bar cutting machine is designed to make cereal bars, granola bars, muesli bars, nut bars, seed bars, dry fruit bars, protein bars, power bars, peanut bars, sesame snaps, and other energy bars based on cripsy rice, puffed rice, cereals, granolas, nuts, seeds, dry fruits, protein powder, grounded nut powders or energy elements.

P401 large scale nutrition bar cutting machine uses slab rolling technology to roll the material mixture into a whole slab with desired height and width, then the slab is cutted by the cross cutting knives to be each uniform sized bars. The complete slab bar making machine includes mixture feeding hopper, double rollers,  double cooling fans, cross cutting unit, conveyor and control box. The cooling fans can be replaced by cooling tunnel for better cooling performance and cooling sticky bars, and the cross cutting unit can be replaced by bar separating system to separate bars from each other for chocolte coating purpose, this will make the slab bar making machine a fully automatic slab bar machine.

Complete slab bar line consists of sugar boiler, material mixer, material lifting conveyor, P401 slab bar forming machine, packing machine. Fully automatic slab bar line uses full automatic cooking system ( electromagnetizing sugar boiler, sugar oil holding tank, sugar sprayer, lifting conveyor and spiral continuous mixer ), and full automatic bar separating system, this depends on customer's requirements. The packing machine can be a separated unit bar packing machine or a full automatic bar sorting and packaging line.

Specifications:

Model P401
Capacity 100-250 KG/H
Cooling type Cooling fans
Voltage 380V, three phase
Power 5kw
Dimension

4800*920*1200mm

Weight 1200KG


P401 large scale nutrition bar cutting machine 0
P401 Automatic slab bar forming machine demo video:


P401 large scale nutrition bar cutting machine 1
Cooker, mixer and material conveyor:
P401 large scale nutrition bar cutting machine 2
Bars produced by P401 automatic granola bar manufacturing machine:
P401 large scale nutrition bar cutting machine 3

Can the slab bar forming line makes chocolate bar?
There are different kinds of chocolate bars: 1. natural chocolate bar; 2. chocolate coated candy bar; 3. chocolate mixed food bar. Our slab bar forming line can only make the chocolate mixed food bar, the chocolate coated candy bar need the chocolate candy bar machine, the natural chocolate bar need chocolate moulding machine or chocolate bar cutting machine, please send us your bar details to check.

Application:

New model slab bar making machine video:



Old model slab bar making machine in customer's factory video:
