Industrial Chocolate Coating Machine For Cookies
  • Industrial Chocolate Coating Machine For Cookies
  • Industrial Chocolate Coating Machine For Cookies
  • Industrial Chocolate Coating Machine For Cookies
  • Industrial Chocolate Coating Machine For Cookies

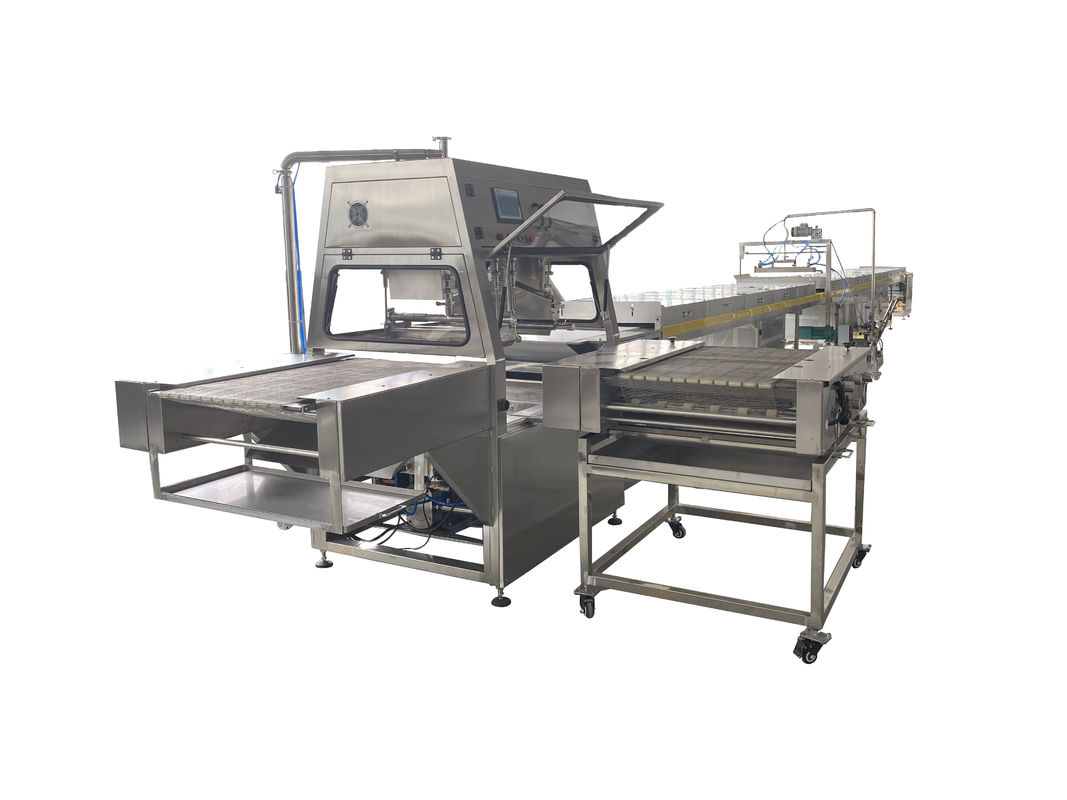

Industrial Chocolate Coating Machine For Cookies

Place of Origin CHINA
Brand Name iPAPA
Certification CE
Model Number 400
Product Details
Belt Width:
400mm
Belt Speed:
1-10meter/min
Tunnel Length:
10meter
Tunnel Temperature:
2-10 ℃
Refrigerator:
2sets
Power:
12.1kw
Weight:
2000KG
Voltage:
380V, Three Phase
Dimention:
14200x950x1800mm
Material:
Stainless Steel 304
Warranty:
1 Year
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Condition:
New
Application:
Snacks, Fruits, Cakes, Breads,cookies, Etc.
High Light:

Cookies Chocolate Coating Machine

,

Industrial Table Top Chocolate Enrober

,

Chocolate Covering Machine 12.1kw

Product Description

Industrial chocolate coating machine for cookies



Description:



Industrial chocolate coating machine for cookies is our industrial level designed equipment for coating chocolate paste on cookies and other food products,such as candies, candy bars, energy bars, rice crispies, cookies, biscuits, cakes, breads, etc.



The industrial chocolate coating machine can create one or more than two different “waterfall” of chocolate liquid for two or more than two different coating,the cookies and other food will enter the chocolate coater machine and will be transferred onto the wire mesh converyor and pass under the Waterfall of the chocolate,the excess chocolate paste from the chocolate waterfall falls through the wire mesh conveyor into a small movable jacketed chocolate tank and will be recirculated.For the pure chocolate(dark chocolate without sugar) can also be re-designed for pumping back to the chocolate holding tank and then re-tempered for next batch of enrobing or coating.

The industrial chocolate coating machines offer a precise and consistent process that ensures an end product with a consistent weight, uniform thickness and a perfect finish,which can get better enrobing quality than coating chocolate manually.



The chocolate coating line consists of chocolate coating machine and chocolate cooling tunnel. The 400 chocolate enrobing line has belt width 400mm and cooling tunnel length 10 meter long. We also have 600mm bellt width with 14 meter long cooling tunnel, 900mm belt width with 20 meter long cooling tunnel and 1200mm belt width with 24 meter cooling tunnel for customer to choose.



Different models of chocolate enrobing line specifications:



Model 400 600 900 1200
Belt width 400mm 600mm 900mm 1200mm
Belt speed 1-10meter/min 1-10meter/min 1-10meter/min 1-10meter/min
Cooling tunnel length 10meter 14meter 20meter 24meter
Refrigerator unit 2 3 4 5
Refrigerator DANFOSS DANFOSS DANFOSS DANFOSS
PLC/Touch screen

Hpmont

Hpmont Hpmont Hpmont
Voltage 380V, Three phase 380V, Three phase 380V, Three phase 380V, Three phase
Power 12.1kw 20.8kw 23.8kw 27.8kw
Dimension 14200x950x1800mm 18200x1150x1800 24200x1450x1800 28250x1750x1800
Weight 2000KG 2450KG 3400KG 4100KG





Product Features

The industrial chocolate enrobing machine is a special automatic equipment for production colored chocolate products. The enrober machine has the functions of full coating, bottom coating and partial coating, and integrates chocolate enrobing and cooling.



Industrial Chocolate Coating Machine For Cookies 0

Application of Industrial Chocolate Enrober Machine
It can dip chocolate paste on the surface of a variety of foods, such as candy, cake, wafer biscuits, cookies, egg rolls,moon cakes and fruit jerky, form a variety of unique taste of chocolate products. The chocolate coating machine can realize enrobing on the surface of food or enrobing on the bottom of food.



Advantages of Industrial Chocolate coating machine
1.Equipped with cooling tunnel, 3P refrigeration units have good refrigeration effect.
2.The chocolate enrober can be designed into two double net coatings, one side can be painted with white chocolate and the other is black chocolate.
3.The conveyor belt is equipped with automatic correction device, the machine uses touch screen, PLC control.
4.The length of chocolate enrobing equipment and cooling tunnel can be adjusted according to customer requirements.



400 Chocolate enrobing production line demo video:





400 Chocolate enrobing line in customer factory:





Industrial chocolate enrobing production line in production:



Industrial Chocolate Coating Machine For Cookies 1

Industrial Chocolate Coating Machine For Cookies 2



Food coated by chocolate enrobing machine



Industrial Chocolate Coating Machine For Cookies 3



Application:



Industrial Chocolate enrobing line for ball products video:





Chocolate coating line for cake products video:





Chocolate coating line for protein bar products video:





Chocolate enrobing line for biscuit stick products video:





Industrial Chocolate enrobing machine for dounut product video:





Chocolate enrobing line for strawberries video:





Chocolate enrobing line with granules sprinkling machine video:
