CE Certificated Copeland Industrial Chocolate Cooling And Covering Tunnels

Minimum Order Quantity : 1 set Price : Negotiate
Packaging Details : Fumigation-free wooden box Delivery Time : 20-30 working days
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 2 sets/month
Place of Origin: CHINA Brand Name: iPAPA
Certification: CE Model Number: PT3P

Detail Information

Compressor Power: 3kw Compressor Brand: Copeland, USA Or Danfoss, France
Motor Power: 0.55kw Blet Width: 200mm-300mm
Voltage: 220V,Single Phase Dimention: 3200x650x950mm
Weight: 400KG Material: Stainless Steel 304
Belt Material: PU Warranty: 1 Year
After-sales Service Provided: Engineers Available To Service Machinery Overseas Condition: New
Application: Chocolate
High Light:

Industrial Chocolate Enrober Cooling Tunnel

,

Chocolate Cooling Machine Covering Tunnels

,

3.2m Industrial Chocolate Cooling Tunnel

Product Description

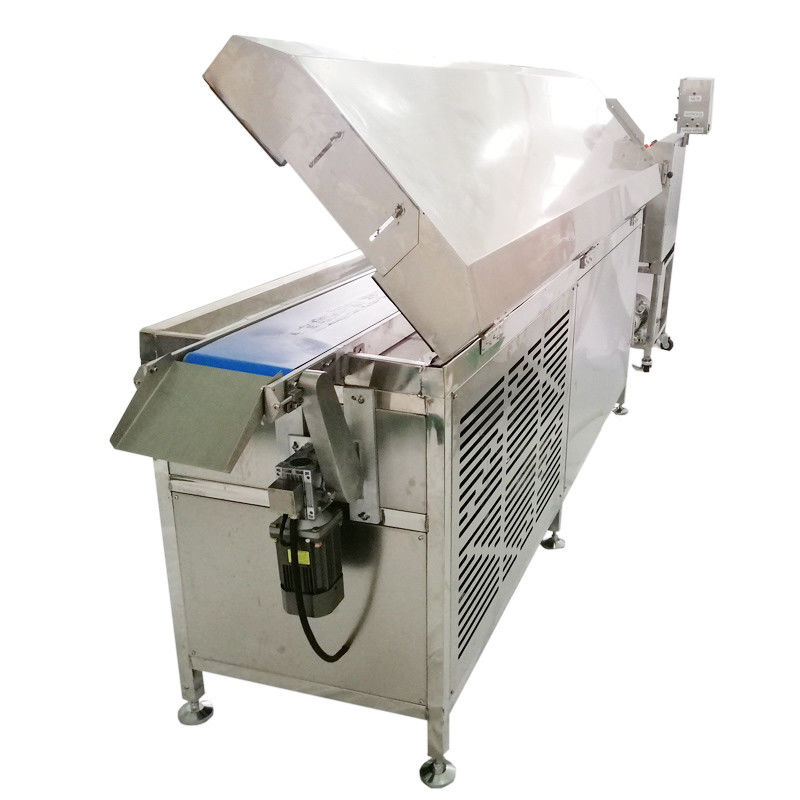

CE certificated Copeland industrial Chocolate cooling and covering tunnels



Description:



CE certificated Copeland industrial Chocolate cooling and covering tunnels is our small chocolate cooling tunnel,which is mainy used to work in conjunction with our Enrobing Machine.The Cooling Tunnel is a long structure, that runs the length of the building for fast cooling on chocolate cooling, energy bar cooling, fruit bar cooling, or other bakery food cooling.



The small chcoclate cooling tunnei is designed to coat and cool various types of products. Built entirely with stainless steel, this tunnel is equipped with a 200mm/300 wide belt and two separate refrigeration units which allow for the creation of zones of different temperatures.

The temperature is set from a very user friendly and versatile control panel that allows the operator to easily navigate between the various functions of the machine. This machine is designed for industrial production.



The small cooling tunnel has only 3.2 meter length with a 3P compressor which can cool down the temperature to - 20 ℃.

The cooling unit we use is famous brand Copeland and the power is 3.5KW,which can create good and fast cooling effect.



The cooling and covering tunnel plays a key role on the chocolate enrobing.The Chocolate enrobing is a process that uses a “waterfall” of chocolate to provide a delicious coating of chocolate on products such as pretzels, chips, peanuts, popcorn, cookies and peanut brittle. The coating can consist of milk, dark, or white chocolate, as well as other coatings. During the enrobing process, a curtain of chocolate covers the product. The bottom of the product is coated at the same time by passing over a pool of chocolate.



After enrobing, the coated product passes into the cooling tunnel. The tunnel has a counter-current airflow so that the chocolate tempering process is not “shocked”. In other words, the conditions in the cooling tunnel are part of the chocolate tempering process. With this type of air flow, the cocoa butter crystals set-up in a manner consistent with a finished product that has a perfect set and fine gloss that our customers expect.



The CE certificated 3.2m chocolate cooling tunnel can be custom-made by tunnel length and compressor power. we can customized 4meter, 6meter, 8meter and 10 meter cooling tunnel with 3P, 5P or 8P compressor according to customer's requirements.



We also have industrial cooling tunnel for customer to choose, the industrial cooling tunnel is with minumum 400mm belt width and 3P refrigerator, the cooling tunnel length can customized to 10 meter, 14 meter or longer.

The cooling tunnel is widely used for chocolate cooling, snack bar cooling and bakery food cooling.



Specifications:



Model PT3P
Belt width 200mm/300mm
Voltage 220V, Single phase
Motor power 0.55kw
Compressor power 3kw
Dimension

3200x650x950mm

Weight 400KG





Application:

CE Certificated Copeland Industrial Chocolate Cooling And Covering Tunnels 0

Commercial cooling tunnel in factory:

CE Certificated Copeland Industrial Chocolate Cooling And Covering Tunnels 1



Industrial cooling tunnel in factory:

CE Certificated Copeland Industrial Chocolate Cooling And Covering Tunnels 2

CE Certificated Copeland Industrial Chocolate Cooling And Covering Tunnels 3



As the cooling tunnel manufacturer in China, Papa Industrial manufacture both our commercial and industrial type cooling tunnel with high quality standard, the cooling tunnel is made with stainless steel 304 grade, cooling tunnel conveor is made with PU belt, welcome to contact us if you have need in our cooling tunnel for sale !



The Enrobing Machine and Cooling Tunnel:



The Cooling Tunnel is a long structure, that runs the length of the building. This tunnel works in conjunction with our Enrobing Machine.The cooling tunnel unit we use is famous brand Copeland and the power is 3.5KW,which can create good and fast cooling effect. The cooling tunnel can be custom-made by different tunnel length and compressor power. we can customized 4meter, 6meter, 8meter and 10 meter cooling tunnel with 3P, 5P or 8P compressor according to customer's requirements.



The Enrobing Machine creates a waterfall of liquid chocolate, which the products move through before they move down the Cooling Tunnel. Once coated, the treats pass under an air curtain and over a vibrating plate to remove the excess chocolate. They then continue through the Cooling Tunnel where they slowly set before reaching the Offload Room. These chocolates are then packaged up and stored in our Chocolate Room, or immediately hand packed depending on demand.



What is Chocolate enrobing?



Chocolate enrobing is a process that uses a “waterfall” of chocolate to provide a delicious coating of chocolate on products such as cakes, chips, peanuts, popcorn, cookies and peanut energy bars. The coating can consist of milk, dark, or white chocolate, as well as other coatings. During the enrobing process, a curtain of chocolate covers the product. The bottom of the product is coated at the same time by passing over a pool of chocolate.Traditionally, the enrobing or coating process was often done manually by hand dipping the filling, confection or snack in tempered chocolate. This manual process can be slow and cumbersome.



What are the characteristics of the chocoate coating machine?



The chocolate coating machine can do this job much faster and more accurately. Using a belt system to transport the center or confection under a curtain of tempered chocolate to quickly create a chocolate covering.

The chocolate enrobing machine allows ease of production for small and large businesses and helps to establish automated production of chocolate truffles, coated chocolate protein bar or energy bars,cookies,etc.

The Chocoate coating machine can be used alone or matched with other equipment. It is suitable for various other products that need to be coated with pulp. One machine is multi-purpose, and customers can buy it with confidence.



What after-sales service is provided about the chocolate coating machine?



1. All our chooclate enrober are guaranteed for one year. During the enrobing machine warranty period, free maintenance services and free replacement of components and accessories will be done if any faults occur.

2.The size of the chocolate covering machine can be customized according to customer requirements so that it can direclty connect to your food equipment,such as the protien bar machine,protein ball machine or maamoul production line,the products are packaged according to wooden boxes, wooden frames, films, etc.;

3. All chocolate coating machines come with detailed instructions and some vulnerable accessories,the user manaul,operation video,training video,cleaning video and assembly video for the enrobing chocoate machine will be provide.Also will provide the timely online technical support.

4. The wearing parts during the warranty period of the equipment will be provided free of charge at random, and we promise to provide the spare parts needed to maintain the equipment at a favorable price.
