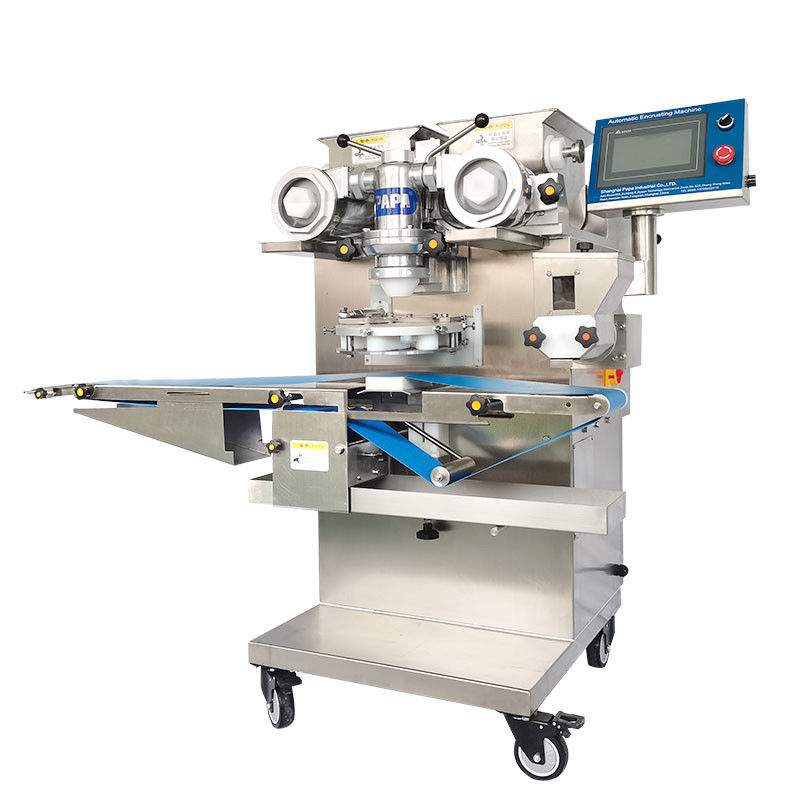

P160 Automatic Ukadiche Modak encrusting Machine
Description:
P160 Automatic Ukadiche Modak encrusting Machine can make stuffed and non-stuffed food products.It can change different skin thickness, length, size of food by the machine. It can also change different molds for making different shaped food products.
The Ukadiche Modak forming machine can also make filling soft stuffed pastries such as kubba ( kibbeh ), coxinha, croquette, arancini, arepas, falafel, mooncake,maamoul, kahk cookie, pineapple cake, mochi, ice cream mochi, meat ball,filled cookies, double color cookies, strip cookies,ice box cookies, chocolate chip cookies, mosaic cookies, panda cookies, twist cookies, flatten filled cookies, shortbread butter cookies, designed cookies, fruit bar, fig bar, date roll, crackers, energy ball, filled date ball, sesame ball, tamarind ball, meat ball, fish ball, beef ball, and so on.
The P160 automatic Ukadiche Modak machine use Mitsubishi's human-computer interface, PLC, Siemens optoelecronic switch, Taiwan driving motor and Japanese complete sets of knives, machine body all parts use high quality stainless steel to make sure the machine keep steady. Safe and healthy.
Features:
* PLC Touch screen, easy to operation.
* Multipurpose encrusting machine could save 99 types production modes.
* Two type hopper: Polymer composite plastics & food standard 304 stainless steel for your choice,
it has the characters of light weight , non-stick ,easy to tear down &install , easy to clean comparing with stainless steel , and more healthy.
* Machine with mixing structure better than normal encrusting machine. It can produce twist products. And makes the skin of the product is more smoother.
* Push-back device makes better food products shape and more stable conveyor.
* Also can add a hopper, which can produce double filling maamoul/cookies, or double color with one filling cookies.
*The ratio of dough and product size can be adjustable.
* Mulch-functional. It can make different filled foods by changing shutter/mold.
* Easy to adjust food size, weight , ratio of dough and filling as you like.
Specifications:
Model | P160 |
---|---|
Capacity | 60-99pcs/min |
Product shape | ball, cone, round strip, side square, terraced, serrate and etc. |
Product weight | 10-250g |
Casing and filling proportion | 1:9-10:0 |
Voltage | 220V, single phase |
Power | 1.75kw |
Dimension | 1680*860*1300mm |
Weight | 280KG |
Food produced by P160 Automatic encrusting machine:
Application:
Encrusting machine for panda cookie:
Encrusting machine for filled bar:
Encrusting machine for energy ball:
Encrusting machine for cookies:
Optional devices:
1. Automatic bar cutting machine
The automatic bar cutting machine is a separate machine controlled by PLC system with screen panel. It is placed right after the P160 Automatic encusting machine conveyor belt. The automatic bar cutting machine adopts teflon coated carbon steel cutting blade which vertically cut the food into pieces, the cutting speed and food length can be adjusted by control panel. The automatic bar cutting machine can make protein bar, fruit bar, filled date bar, round discs, date roll, cookies, etc.
2. Automatic ball roller machine
The automatic ball roller machine is a separate machine controlled by knob of frequency converter, It is also placed right after the P160 Automatic encrusting machine conveyor belt, this ball roller machine consists of stainless steel 304 structure and teflon coated aluminum rolling wheel. The rolling wheel is customized acccording to customer's ball diameter. The automatic ball roller machine can make energy ball, protein ball, cookie dough ball, etc.
3. Automatic maamoul stamping machine
The automatic maamoul and mooncake stamping machine is the essential equipent for making maamoul and mooncake. The customized moulds mounted on the stamping machine allow the machine to make required patterns and sizes.
4. Automatic tray aligning machine
The automatic tray aligning machine is the essential equipment for food production line, it largely saves labor and time by automatically collecting the food into trays uniformly.
The P160 Automatic encrusting machine can make lots of other food, welcome to send us an inquiry or contact us on line for more information!
