Full Automatic Stuffed Cookie Pan Arranging Machine

Minimum Order Quantity : 1 set Price : Negotiate
Packaging Details : Fumigation-free wooden box Delivery Time : 7-14 working days
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 1 set/week
Place of Origin: CHINA Brand Name: iPAPA
Certification: CE Model Number: P160

Detail Information

Capacity: 40-85 Pcs/min Application: Mooncake, Maamoul, Pineapple Cake, Cookies, Etc.
Product Weight: 10-250g Casing And Filling Proportion: 1:9-10:0
Power: 4.7kw Voltage: 220V
Dimention: 6100*1180*1450mm Weight: 780KG
Material: Stainless Steel 304 Warranty: 1 Year
After-sales Service Provided: Engineers Available To Service Machinery Overseas Condition: New
High Light:

Cookie Pan Arranging Machine

,

Stuffed Pan Arranging Machine

,

Automatic Arranging Stuffed Machine

Product Description

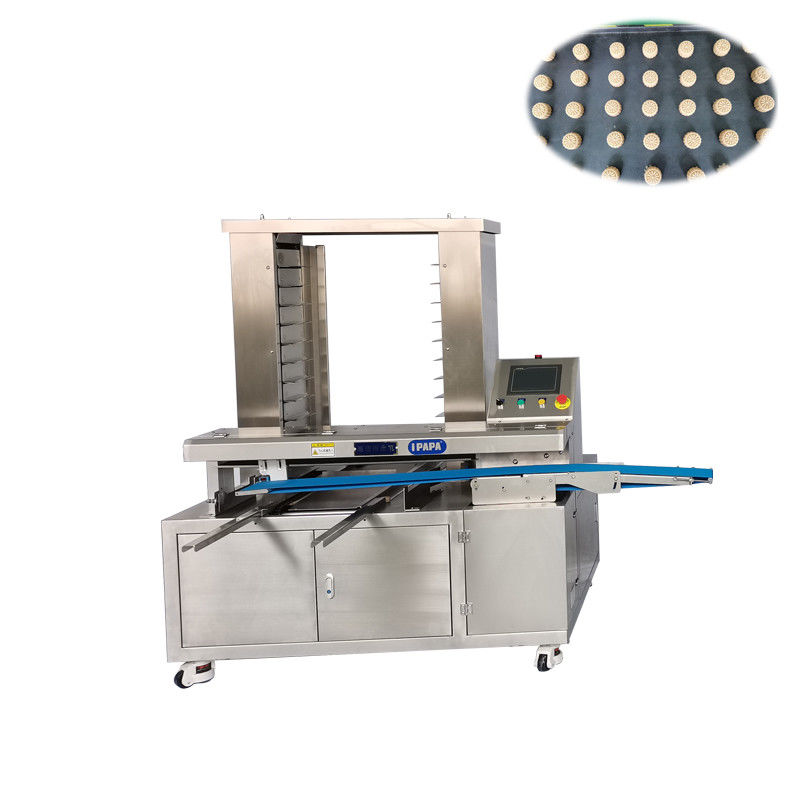

Full automatic stuffed cookie Pan arranging machine



Description:



The Full automatic stuffed cookie Pan arranging machine is the accessory equipment for non stuffed energy bar,stuffed fig bar,cookie,maamoul,mooncake and other food production.The tray arranger is widely used to collect the finished food into bakery trays into desired order.The tray aligning machine is largely saves the labour cost and time saving.



Specifications:

  • Pan arranging machine

Product Description:

Fully automatic arranging machine is suitable for food enterprises of scale production, it could pick up products in the baking trays directly. It can avoid the destruction or contamination by hand before the product is not baked, and can reach food hygiene standards.

Packaging Details:

Daub coal oil on the surface to protect the machine from moisture, then cover with plastic film. Finally pack them with wooden case.



Brand Name Model Power (kw)

Voltage

(V)

Dimension

L*W*H

(mm)

Output

pcs/min

Machine weight

(kg)

Material

Baking tray

(mm)

Packing weight

(kg)

Packing Size

(mm)

Warranty Certification
PAPA P168-5 2.1

220V Single phase

(Customize)

1850*1500*1620 30-350 320

304 Stainless Steel



400*600 350 1900*1600*1700 1 CE





Full Automatic Stuffed Cookie Pan Arranging Machine 0





Full automatic mooncake making machine demo video:





Food produced by mooncake making machine



Full Automatic Stuffed Cookie Pan Arranging Machine 1

Application:



Mooncake making machine for maamoul:





Optional devices:



1. Automatic bar cutting machine

The automatic bar cutting machine is a separate machine controlled by PLC system with screen panel. It is placed right after the P160 Automatic encusting machine conveyor belt. The automatic bar cutting machine adopts teflon coated carbon steel cutting blade which vertically cut the food into pieces, the cutting speed and food length can be adjusted by control panel. The automatic bar cutting machine can make protein bar, fruit bar, filled date bar, round discs, date roll, cookies, etc.

Full Automatic Stuffed Cookie Pan Arranging Machine 2



2. Automatic ball roller machine

The automatic ball roller machine is a separate machine controlled by knob of frequency converter, It is also placed right after the P160 Automatic encrusting machine conveyor belt, this ball roller machine consists of stainless steel 304 structure and teflon coated aluminum rolling wheel. The rolling wheel is customized acccording to customer's ball diameter. The automatic ball roller machine can make energy ball, protein ball, cookie dough ball, etc.

Full Automatic Stuffed Cookie Pan Arranging Machine 3
