Ss304 automatic fig biscuit bar making machine

Minimum Order Quantity : 1 set Price : Negotiate
Packaging Details : Fumigation-free wooden box Delivery Time : 7-14 working days
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 1 set/week
Place of Origin: CHINA Brand Name: iPAPA
Certification: CE Model Number: P160

Detail Information

Capacity: 60 Pcs/min Application: Stuffed Date Bar, Date Cookie, Date Roll Fig Newtons, Etc.
Product Weight: 10-250g Casing And Filling Proportion: 1:9-10:0
Power: 4.5kw Voltage: 220V
Dimention: 4000*1650*1560mm Weight: 650KG
Material: Stainless Steel 304 Warranty: 1 Year
After-sales Service Provided: Engineers Available To Service Machinery Overseas Condition: New
High Light:

Ss304 Automatic Date Bar Making Machine

,

Automatic Fig Biscuit Bar Making Machine

,

P160 Filled Date Bar Machine

Product Description

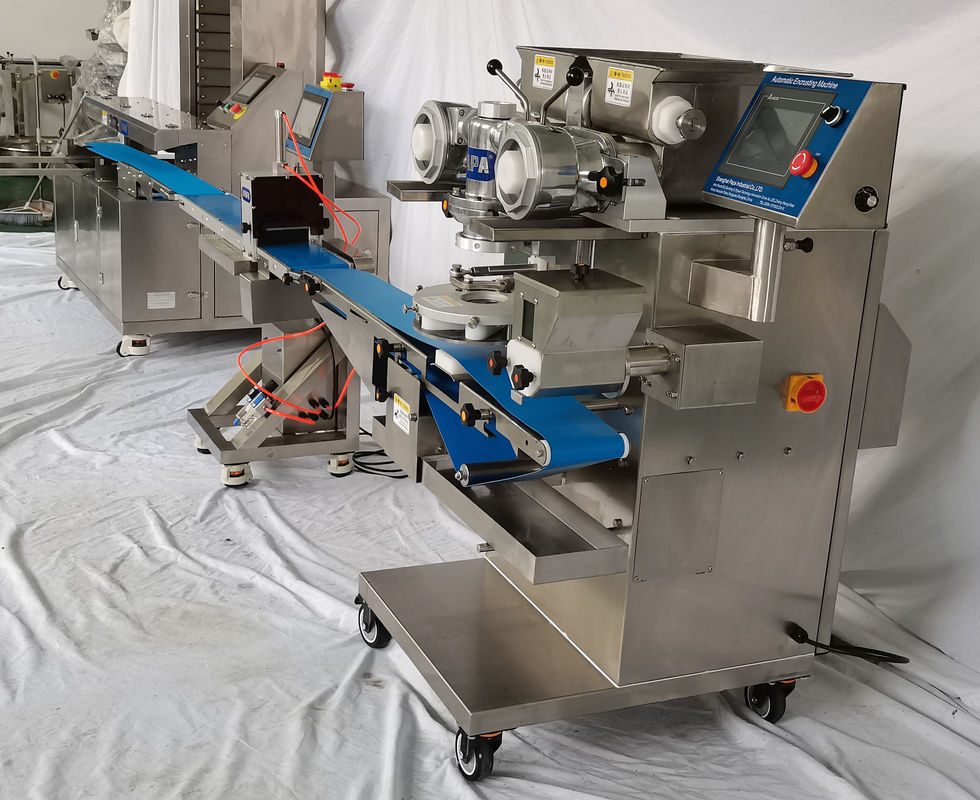

Ss304 automatic fig biscuit bar making machine



Description:



The Fig biscuit bar making machine consists of: P160 Automatic encruting machine, Automatic fig bar cutting machine and Automatic fig bar tray arranger machine. The P160 fig bar encrusting machine is used as the date bar extruder to form the stuffed or non-stuffed bar rope or roll rope, the date bar cutting machine is used to cut the rope into bars, squares, bites, rolls, discs, etc, the tray arranger machine is used to collect the final products in order.



The stuffed date bar making machine can make two type of products: 1. stuffed products, such as fig bar, stuffed date cookies, stuffed date roll, stuffed bar shape cookies, fig newtons, fig roll, etc. It can also make other stuffed products like stuffed churros, etc. 2. Non-stuffed products, such as date paste bar, fruit bar, date roll, date bites, energy squres, date discs, cookie discs, etc. The stuffed date bar machine can also make three layers, two layers or double color bar shape cookies.



The complete fig bar production line incudes mixer, encrusting machine, fig bar cutter, tray arranger, conveyor, baking oven, flow wrapping machine. Optional equipment can be added to the date bar production line, such as maamoul stamping machine for making maamouls and mooncakes, ball roller machine for making energy balls and date balls, wire cut machine for making wire cut cookies and panda cookies,etc.



Features:



1.PLC Touch screen, easy to operation.

2.Could save 99 types production modes.

3.Two hoppers of Polymer composite plastics, it has the characters of light weight , non-stick ,easy to tear down &install , easy to clean comparing with stainless steel , and more healthy.

4.Machine with mixing structure better than normal encrusting machine. It can produce twist products. And makes the skin of the product is more smoother.

5.Push-back device makes better food products shape and more stable conveyor.



Specifications:

Model P160
Capacity 60 pcs/min
Application Stuffed date bar, date cookies, date roll, fig newtons, date bites, etc.
Product weight 10-250g
Casing and filling proportion 1:9-10:0
Voltage 220V, single phase
Power 4.5kw
Dimension 4000*1650*1560mm
Weight 650KG



Ss304 automatic fig biscuit bar making machine 0

Stuffed date bar making machine demo video:





Food produced by stuffed date bar making machine



Ss304 automatic fig biscuit bar making machine 1

Application:



Stuffed date bar making machine video:





Stuffed date cookie bar making machine video:





Date paste bar making machine video:





Flat cookie bar making machine video:







Date roll making machiine video:







Double layers cookie bar making machine video:







Chocolate coated date paste bar production line video:





Optional device:



1. Automatic ball roller machine

The ball roller machine can be added in the date bar production line for make date ball, coconut date ball, coconut ball, energy ball, etc. The ball roller machine is a small sized and separated unit which can be easy moved, It is an ideal equipment for customer to develop ball products.



Ss304 automatic fig biscuit bar making machine 2

2. Automatic fig bar wrapping machine



Features:



(1) main-machine interface, convenient parameter setting;

(2) double frequency control (optional servo motor). Bag length is cut. Without air conditioning go. One step, saving time and film;

(3) self-diagnostic function. Failure display;

(4) High sensitivity optical electric color mark tracking, digital input cut position which makes the cutting position more accurately;

(5) temperature independent PI D control, and better suited to a variety of packaging materials;

(6) targeting stop function, not Sticking knife or wasting film;

(7)Power train simple, more reliable, easier maintenance;

(8) All controlled by the software. Convenient for function adjusting and technical upgrade. to maintain the advanced.

Ss304 automatic fig biscuit bar making machine 3



Shanghai Papa Industrial Co.,LTD is a professional manufacturer for making the date bar machine, our date bar making machine is CE certificated and exported to whole world, especially to Europe and USA. Welcome to contact us if you want to know more details of our fig bar extruder machine!
