Mini Type Protein Ball Making Machine Automatic Coconut Date Ball Extruder
  • Mini Type Protein Ball Making Machine  Automatic Coconut Date Ball Extruder
  • Mini Type Protein Ball Making Machine  Automatic Coconut Date Ball Extruder
  • Mini Type Protein Ball Making Machine  Automatic Coconut Date Ball Extruder

Mini Type Protein Ball Making Machine Automatic Coconut Date Ball Extruder

Place of Origin CHINA
Brand Name iPAPA
Certification CE
Model Number P110
Product Details
Capacity:
60 Pcs/min
Product Shape:
Ball Shape
Product Weight:
10-250g
Power:
2.25kw
Voltage:
220V,Single Phase
Dimention:
1900*690*1300MM
Weight:
250KG
Material:
Stainless Steel 304
Warranty:
1 Year
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Condition:
New
Application:
Energy Ball, Protein Bar, Date Ball, Coconut Ball, Tamarind Ball,etc.
High Light:

Mini Type Protein Ball Making Machine

,

Automatic Coconut Date Ball Extruder

,

60pcs/Min Date Ball Extruder

Product Description

Min Type protein ball making machine

Description:

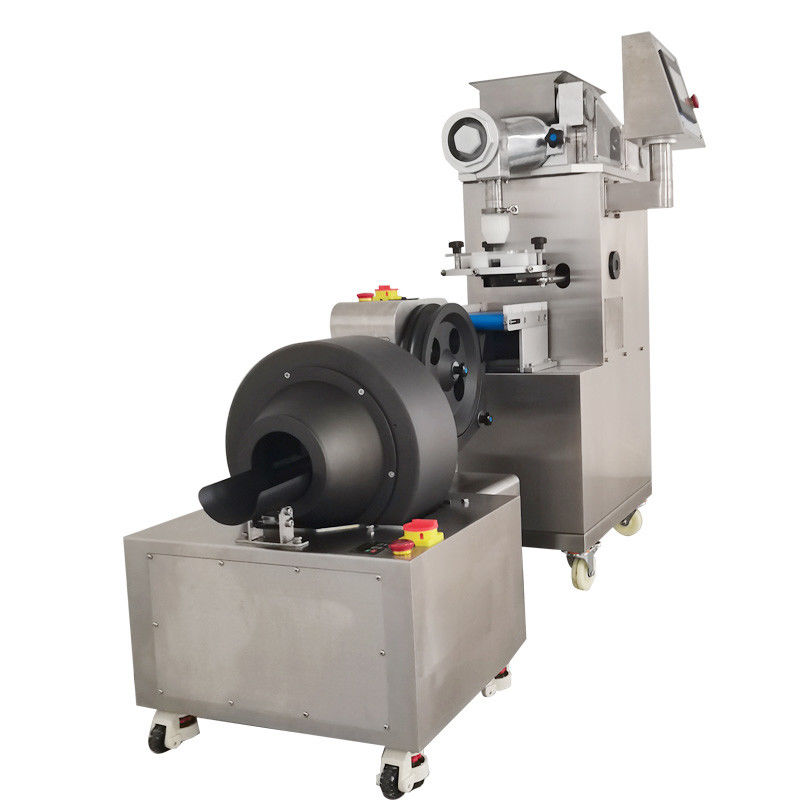

Mini type protein ball making machine include extruder and rounder roller. It is small type machine which we special designed for small capacity business use. It is suitable for making food ball without inside filling. Special design molds and working method make it more stable working condition and high reputation from customers. Working with powder Coating can not only make the balls more rounder, but also coating outside automatically.



Features:



* Machine body & Hopper made by 304 Stainless steel.

* Special designed mold/Nozzle can make different size balls.

* It can make 1 line, 2 line, 4 line or 6 row at one time, so it not only suitable for small capacity business use,

  but also can use in big capacity business.

* Specification designed make the mold more easy for cean and install.

* The machine will be install ready when shipment, no need install when received.

.

Specifications:

Model P110
Capacity 60 pcs/min
Product shape ball shape
Product weight 10-250g
Voltage 220V, single phase
Power 2.25kw
Dimension 1900*690*1300MM
Weight 250KG


Mini Type Protein Ball Making Machine  Automatic Coconut Date Ball Extruder 0

Mini Type Protein Ball Making Machine  Automatic Coconut Date Ball Extruder 1

Mini Type Protein Ball Making Machine  Automatic Coconut Date Ball Extruder 2
Ball products produced by protein ball making machine:

Mini Type Protein Ball Making Machine  Automatic Coconut Date Ball Extruder 3
Application:


Small protein ball making machine for 30mm diamater ball video:

Small protein ball making machine for 40mm diamater ball video:




Small milk protein ball making machine for 50mm diamter ball video:





Small tamarind ball making machine video:




Optional devices:

1. Automatic bar cutting machine

The automatic bar cutting machine is a separate machine controlled by PLC system with screen panel. It is placed right after the P110 Automatic entrude machine conveyor belt. The automatic bar cutting machine adopts teflon coated carbon steel cutting blade which vertically cut the food into pieces, the cutting speed and food length can be adjusted by control panel. The automatic bar cutting machine can make protein bar, fruit bar, filled date bar, round discs, date roll, cookies, etc.
Mini Type Protein Ball Making Machine  Automatic Coconut Date Ball Extruder 4


2. Chocolate enrober
Chocolate enrober is used for coat chocolate around food or on bottom of food, the commercial chocolate enrober machine is small sized and easy operation. Customer can choose to connect air fan cooling or tunnel cooling after the chocolate enrober machine. The chocolate enrober has different capacities for customer to choose.

Mini Type Protein Ball Making Machine  Automatic Coconut Date Ball Extruder 5


3. Planetary mixer
The multi-function high speed planetary mixer has a compact structure,with multi-function of egg whipping,stuffing homogenizing,and dough mixing. it is the essential equipment for materials mixing.
Mini Type Protein Ball Making Machine  Automatic Coconut Date Ball Extruder 6

Welcome to contact us if you are interested in our small protein ball making machine, we can customize the machines accoding to your requirements!
