| Place of Origin | CHINA |
| Brand Name | iPAPA |
| Certification | CE |
| Model Number | P401 |
Full automatic Slitting cereal bar forming machine
Description:
Established in 2014,Papa Machinery Equipment Co.,LTD. is Full Automatic Cereal Bar Production Line manufacturer and trader specialized in the research, development and production of Automatic Cereal Bar Line. We are located in Shanghai, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.

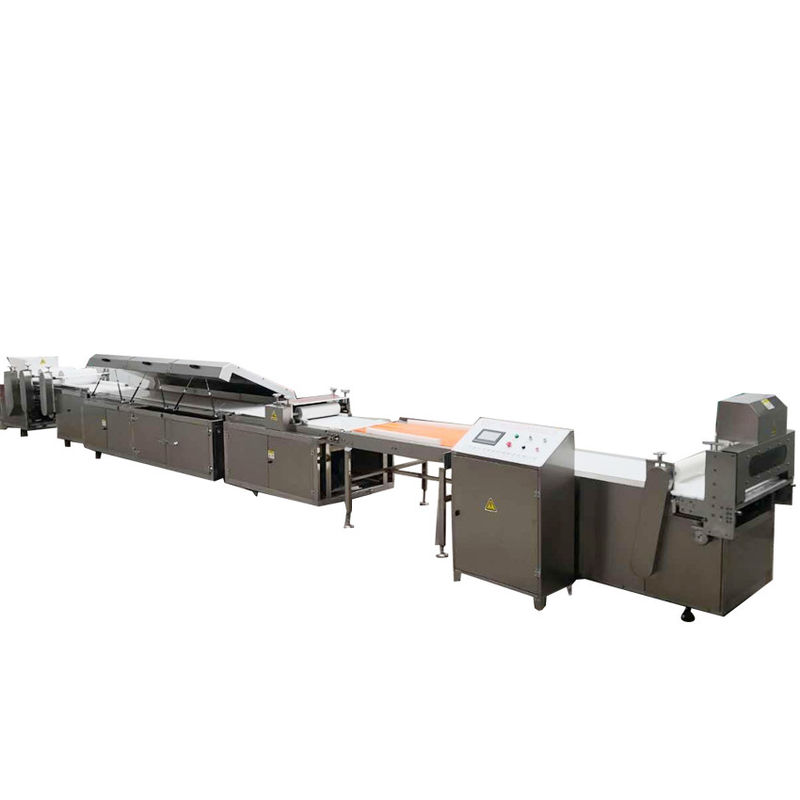

Full Automatic Cereal Bar Production Line Description:
The full automatic cereal bar production line is our newly developed product in recent years.It adopts the advanced European technology and design,with high configuration and quality.The line is the ideal equipment For producing cereal bar,muesli bar,granola bar,energy bar,nuts bar,seeds bar,protein bars and so on.
The cereal bar line includes: syrup cooking,storage,continuous mixing,material double rolling,
flatting,tunnel cooling,longitudinal cutting,bar separator,guillotine cutting.
The line can also coordinate with chocolate enrobing machine,which can produce all kinds of chocolate enrobed bars.
Specifications:
| Model: |
P403 |
| Output: |
200-300 kg per hour |
| Effective belt width: |
480mm |
| Total power: |
17 KW |
| Voltage: |
220V/380V |
| Line cutting speed: |
0-16m/min |
| Belt speed: | 0-2000MM/MIN |
| Total Width: | 1.1 meters |
| Total length: | 17.6M |
| Machine Weight: | 3 tons |
| Height: | 1.2 meters |
| Working condition: | Temperature:18-25°C,Humidity:30-55% |
| Machine configuration | |
| 4 meters forming and roller | 6 meterscooling tunnel |
| 2 meters separating system | 1.6 meters cutter |
P401 Automatic slab bar forming machine demo video:
Cooker, mixer and material conveyor:
Bars produced by P401 Slab bar forming machine:
Application:
New model slab bar making machine video:
Old model slab bar making machine in customer's factory video:
Optional device:
1. Chocolate enrobing line
The Chocolate enrobing line is used after the slab bar line for chocolate coating outside the bar or on the bottom of the bar. The separated bars will be transfered to the chocolate enrober and the long cooling tunnel will cool down the chocolate bars before entering the flow wrapping machine.
Chocolate enrobing line for energy bar video:
2. Full automatic sorting and flow wrapping line
The full automatic sorting and flow wrapping line is used in the production lines like slab bar production line, protein bar production line or chocolate production line to do automatically bag flow wrap packaging. This section has no manual operation, all processes are done by the machine.
Bar sorting and flow wrappling line video:
Slab bar forming machine is the most mature product made by Papa Industrial, It has different names in different countries, it is often called cereal bar making machine and granola bar making machine in USA and European countries, It is often called peanut candy bar making machine in India, or sesame snaps making machine and muesli bar making machine in Middle East, etc. No matter it's a cereal bar prodction line, granola bar production line or energy bar production line, they are all slab bar forming line, only some parts of the slab bar line need to be customized.
Welcome to contact us if you are interested in our multifunctional energy bar making machine!
