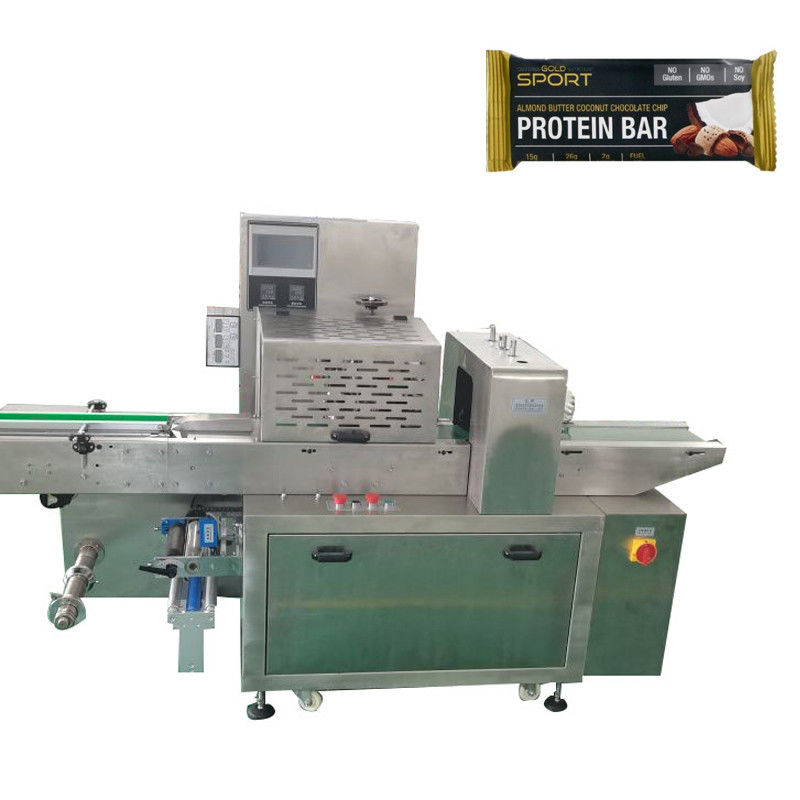

Flow wrapping machine for chocolate protein bar fully automatic horizontal wrapping flow pack packaging machine
  • Flow wrapping machine for chocolate protein bar fully automatic horizontal wrapping flow pack packaging machine
  • Flow wrapping machine for chocolate protein bar fully automatic horizontal wrapping flow pack packaging machine
  • Flow wrapping machine for chocolate protein bar fully automatic horizontal wrapping flow pack packaging machine
  • Flow wrapping machine for chocolate protein bar fully automatic horizontal wrapping flow pack packaging machine

Flow wrapping machine for chocolate protein bar fully automatic horizontal wrapping flow pack packaging machine

Place of Origin China
Brand Name ipapa
Certification CE
Model Number PA-250
Product Details
Name:
Full Automatic No Empty Bag Flow Wrapping Machine
Power (kw):
3KW
Size (L*W*H Mm):
3400*830*1350
Packing Speed (bag/min):
35-150
Packaging Film Width (mm):
90-240
Sealing Pressure (Newton/mm2):
15
Packaging Film Material:
OPP、PE、PVC、OPP/CPP、PT/PE、KOP/CPP、Aluminum Film Etc.
High Light:

220V Flow Packing Machine

,

chocolate Flow Packing Machine

,

horizontal small flow wrapping machine

Product Description

Description:Flow wrapping machine for chocolate protein bar fully automatic horizontal wrapping flow pack packaging machine

Connecting conveyor for packing machine

Product Description:

Precise continuous feeding.

Packaging Details:

Daub coal oil on the surface to protect the machine from moisture, then cover with plastic film. Finally pack them with wooden case.

Brand Name Model Power (kw)

Voltage

(V)

Dimension

L*W*H

(mm)

Output

pcs/min

Machine weight

(kg)

Packing weight

(kg)

Packing Size

(mm)

Warranty Certification
PAPA ZP2000-1 1.2

220V Single phase

(Customize)

1760*400*900 35-180 300 350 1500*770*1220 1 CE

Flow wrapping machine(film downside wrapping)

This machine is suitable for packing all kinds of solid and regular products. For packing food: biscuits, bread, instant noodles, ice cream, moon cakes, soft sweets, etc.; other categories such as: soap, Fengyoujing, pocket notebooks, boxed pens, tape, regular-shaped medicines and others. This machine has good sealing performance, clear sealing, neat, flexible, fast, compact structure, running smooth, stable rotation and low noise.

Feature:

1) The main control circuit adopts inverter control, PLC touch screen display, and provided the good interface of person and machine. The machine operation is concentrated and intuitive;

2) The whole machine adopts dual frequency converter control, wide frequency conversion range, large speed adjustment range, which permits stepless variation. Packaging speed can be set by the production speed of the production line, and the matching is perfect.

3) After setting the packaging film length and the packing bag length, they are automatically controlled and tracked by a high-sensitivity electric eye. The bag length is accurate and not need to adjust by manual.

4) Each sealing temperature is independently controlled, suitable for a variety of packaging materials, and the sealing is beautiful and firm.

5) The printer can be configured according to the needs of users, so that the printing of production date, production batch number, etc. can be synchronized with the packaging..

Specifications and technical parameters



Packing speed (bag/min)

35-150



Packaging film width (mm)

90-240



Bag size (mm) Length(flat bag)

85-300



Width

30-100



Height

5-30



Total power (kw)

3.0



Main motor power (kw)

0.75+0.75



Heating power (kw)

1.2



Machine net weight (kg)

600



Machine dimensions (length * width * height) (mm)

1640×830×1350



Machine noise (dB)

≤78dB



Qualified rate of bagging (percentage)

≥98%



Sealing pressure (Newton/mm2)

15



Voltage 220V 50Hz
Packaging film material OPP,PE,PVC,OPP/CPP,PT/PE,KOP/CPP,Aluminum film etc.


Flow wrapping machine for chocolate protein bar fully automatic horizontal wrapping flow pack packaging machine 0
Flow wrapping machine for chocolate protein bar fully automatic horizontal wrapping flow pack packaging machine 1



Flow wrapping machine for chocolate protein bar fully automatic horizontal wrapping flow pack packaging machine 2

Papa Industrial mainly uses the flow wrapping machine to pack snack bars, PA250 model is the ideal protein bar wrapping machine, snack bar wrapping machine, fruit bar wrapping machine, candy bar wrapping machine, cereal bar wrapping machine, chocolate bar wrapping machine, and granola bar packaging machine, Papa Industrial also uses the flow wrapping machine to pack cookies and maamouls. No matter a flow wrapping machine or a fully automatic flow wrapping production line, Papa Industrial can provide you turnkey solution for food packaging ! Weclome to contact us for more information !
