Automatic maamoul protein bar date bar energy bar tray aligning machine
  • Automatic maamoul protein bar date bar energy bar tray aligning machine

Automatic maamoul protein bar date bar energy bar tray aligning machine

Place of Origin CHINA
Brand Name iPAPA
Certification CE
Product Details
Power:
2.1kw
Belt Width:
150mm
Speed:
30-200 Pieces/min
Voltage:
220V,Single Phase
Dimention:
1850x1500x1620mm
Weight:
350KG
Material:
Stainless Steel 304
Belt Material:
PU
Warranty:
1 Year
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Condition:
New
High Light:

tray aligning Optional Food Machine

,

date bar Optional Food Machine

,

energy bar automatic maamoul machine

Product Description

Automatic maamoul protein bar date bar energy bar tray aligning machine



Description:

Automatic maamoul protein bar date bar energy bar tray aligning machine is an automatic arranging equipment suitable for large-scale food enterprises to make shortbread, bread, cookie, snack bar, and other foods. The tray aligner machine can freely modify the number of items placed, the diameter of the material and other parameters according to the needs of the user, and automatically discharge the material in the tray.



Features:

1. The vertical tray arranging machine is suitable for large-scale food enterprises. The fully automatic tray arranger machine can avoid manual damage or pollution before the product is baked, so as to meet the food hygiene standards.

2. According to the needs of users, the tray arrangement machine can set the number of placing, freely modify the parameters (number of columns, number of rows), and automatically discharge the materials in the tray.

3. All food-contact parts of the pan aligning machine are made of stainless steel and food-grade plastics, which are hygienic, safe and efficient.

4. The user-friendly operating system of the pan arranging machine is simple and easy to understand. The control system of the pan arranger has its own memory function, which can memorize the setting parameters of different products, and can be used directly when they are called out during production, which is convenient and fast.



The standard tray arrangement machine is designed for 600x400mm tray size, It can be customized according to customer's different tray sizes. Also the tray arrangement machine can customize the conveyor belt length and width to fit customer's food making machine.



The tray aligning machine is high speed with durable quality, maximum speed is up to 200 pieces product per minute. The tray aligning machine is widely used after the encrusting machine, bread making machine, protein bar extruder, and other food forming machines in food production line.



Specifications:



Model 150
Speed 30-200pieces/min
Belt width 150mm
Tray size 600x400mm (can be customized)
Voltage 220V, Single phase
Motor power 0.55kw
Power 2.1kw
Dimension

1850x1500x1620mm

Weight 350KG

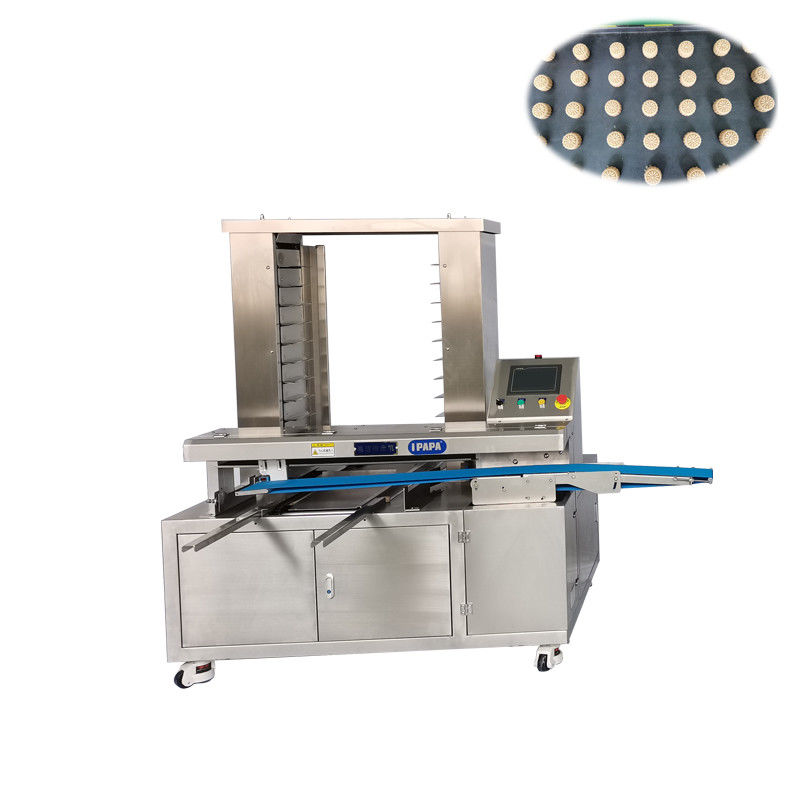

Automatic maamoul protein bar date bar energy bar tray aligning machine 0



Automatic maamoul protein bar date bar energy bar tray aligning machine 1

Application:



Tray aligning machine for energy bar video:





Tray aligning machine for cookie video:





Tray aligning machine for bread video:





The pan arranger machine is widely used in different food production line, it is high speed product collecting, after the products are dropped to the baking pans, the pans can be taken to rotary baking oven or directly conveyed to the tunnel oven, the pans also can be taken for product storage. The pan arranging machine can meets most customer's needs for bulk food production.

If you are interested in our pan aligning machine, please feel free to contact us !
