Full automatic stuffed fig bar machine/good feedback fig bar protein bar maker machine

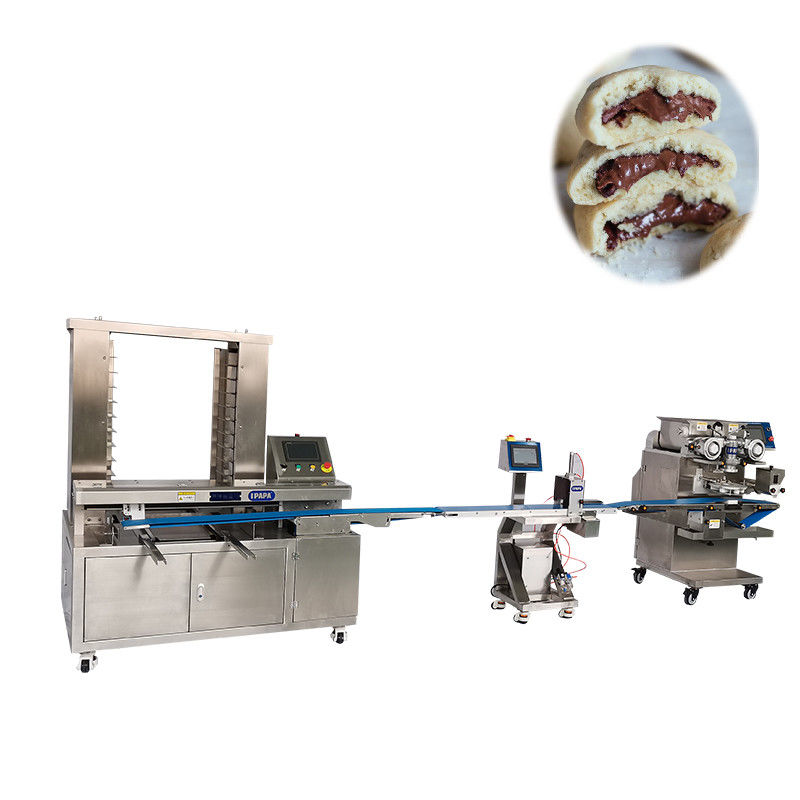

Full automatic stuffed fig bar production line consists of: P160 Automatic encruting machine, Automatic fig bar cutting machine and Automatic fig bar tray arranger machine. The P160 Full automatic stuffed fig bar encrusting machine is used as the date bar extruder to from the stuffed or non-stuffed bar rope or roll rope, the date bar cutting machine is used to cut the rope into bars, squares, bites, rolls, discs, etc, the tray arranger machine is used to collect the final products in order.
The stuffed date bar making machine can make two type of products: 1. stuffed products, such as fig bar, stuffed date cookies, stuffed date roll, stuffed bar shape cookies, fig newtons, fig roll, etc. It can also make other stuffed products like stuffed churros, etc. 2. Non-stuffed products, such as date paste bar, fruit bar, date roll, date bites, energy squres, date discs, cookie discs, etc. The stuffed date bar machine can also make three layers, two layers or double color bar shape cookies.
The filled fig bar making machine just need to take the innter nozzle out of the encrusting machine for making non-stuffed bars. For non-stuffed bars like date paste bar which requires bag packaging, It can connect flow packaging line automatically. For stuffed bars like stuffed date cookies which requires baking, It can connect tunnel baking oven or collect the bar by trays.
The complete fig bar production line incudes mixer, encrusting machine, fig bar cutter, tray arranger, conveyor, baking oven, flow wrapping machine. Optional equipment can be added to the date bar production line, such as maamoul stamping machine for making maamouls and mooncakes, ball roller machine for making energy balls and date balls, wire cut machine for making wire cut cookies and panda cookies,etc.
|Application||Stuffed date bar, date cookies, date roll, fig newtons, date bites, etc.|
|Casing and filling proportion||1:9-10:0|
|Voltage||220V, single phase|
Stuffed date bar making machine demo video:
Food produced by stuffed date bar making machine:
Stuffed date bar making machine video:
Stuffed date cookie bar making machine video:
Date paste bar making machine video:
Flat cookie bar making machine video:
Date roll making machiine video:
Double layers cookie bar making machine video:
Chocolate coated date paste bar production line video:
1. Automatic ball roller machine
The ball roller machine can be added in the date bar production line for make date ball, coconut date ball, coconut ball, energy ball, etc. The ball roller machine is a small sized and separated unit which can be easy moved, It is an ideal equipment for customer to develop ball products.
2. Automatic fig bar wrapping machine
(1) main-machine interface, convenient parameter setting;
(2) double frequency control (optional servo motor). Bag length is cut. Without air conditioning go. One step, saving time and film;
(3) self-diagnostic function. Failure display;
(4) High sensitivity optical electric color mark tracking, digital input cut position which makes the cutting position more accurately;
(5) temperature independent PI D control, and better suited to a variety of packaging materials;
(6) targeting stop function, not Sticking knife or wasting film;
(7)Power train simple, more reliable, easier maintenance;
(8) All controlled by the software. Convenient for function adjusting and technical upgrade. to maintain the advanced.
Shanghai Papa Industrial Co.,LTD is a professional manufacturer for making the date bar machine, our date bar making machine is CE certificated and exported to whole world, especially to Europe and USA. Welcome to contact us if you want to know more details of our fig bar extruder machine!
