Automatic stuffed date bar machine Fig Bar Making Machine

Minimum Order Quantity : 1 set Price : Negotiate
Packaging Details : Fumigation-free wooden box Delivery Time : 7-14 working days
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 1 set/week
Place of Origin: CHINA Brand Name: iPAPA
Certification: CE Model Number: P160

Detail Information

Capacity: 60 Pcs/min Application: Stuffed Date Bar, Date Cookie, Date Roll Fig Newtons, Etc.
Product Weight: 10-250g Casing And Filling Proportion: 1:9-10:0
Power: 4.5kw Voltage: 220V
Dimention: 4000*1650*1560mm Weight: 650KG
Material: Stainless Steel 304 Warranty: 1 Year
After-sales Service Provided: Engineers Available To Service Machinery Overseas Condition: New
High Light:

120 pcs/min protein bar extruder

,

P160 date protein bar extruder

,

arranger fig bar making machine

Product Description

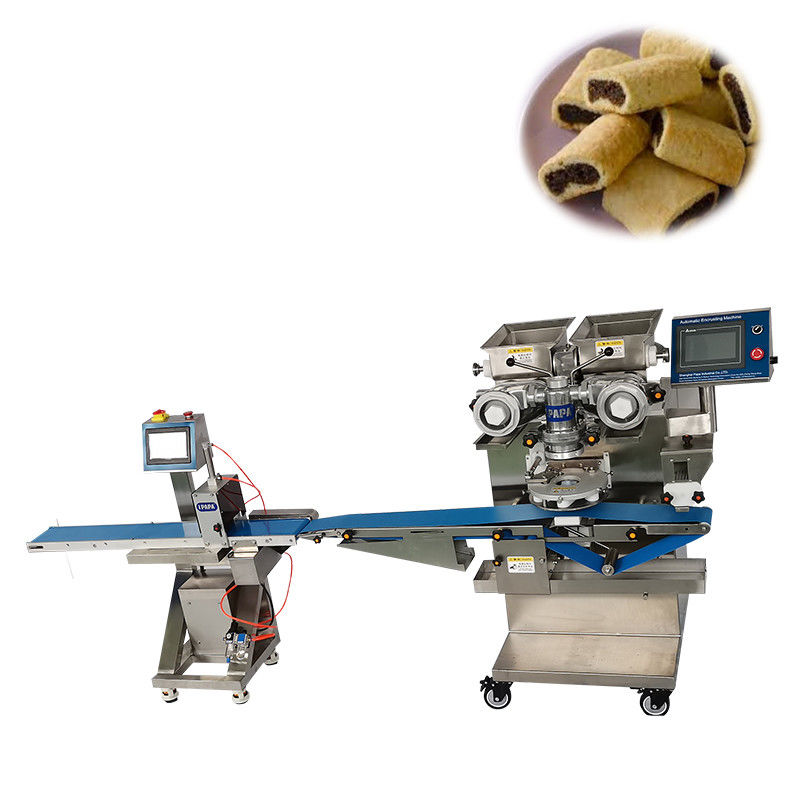

Automatic stuffed date bar machine/fig bar making machine



Description:

Automatic stuffed date bar machine consists of: P160 Automatic protein bar encruting machine, Automatic ptotein bar cutting machine and Automatic tray arranger machine. The P160 Automatic protein bar encrusting machine is used as the protein bar extruder to from the stuffed or non-stuffed bar rope or roll rope, the protein bar bar cutting machine is used to cut the rope into bars, squares, bites, rolls, discs, etc, the tray arranger machine is used to collect the final products in order.



The stuffed date bar making machine can make two type of products:

1. stuffed products, such as stuffed date bar, stuffed date cookies, stuffed date roll, stuffed bar shape cookies, fig newtons, fig roll, etc. It can also make other stuffed products like stuffed churros, etc.

2. Non-stuffed products, such as date paste bar, fruit bar, date roll, date bites, energy squres, date discs, cookie discs, etc. The stuffed date bar machine can also make three layers, two layers or double color bar shape cookies.



The filled date bar making machine just need to take the innter nozzle out of the encrusting machine for making non-stuffed bars. For non-stuffed bars like date paste bar which requires bag packaging, It can connect flow packaging line automatically. For stuffed bars like stuffed date cookies which requires baking, It can connect tunnel baking oven or collect the bar by trays.



The complete date bar production line incudes mixer, encrusting machine, date bar cutter, tray arranger, conveyor, baking oven, flow wrapping machine. Optional equipment can be added to the date bar production line, such as maamoul stamping machine for making maamouls and mooncakes, ball roller machine for making energy balls and date balls, wire cut machine for making wire cut cookies and panda cookies,etc.



Specifications:

Model P160
Capacity 60 pcs/min
Application Stuffed date bar, date cookies, date roll, fig newtons, date bites, etc.
Product weight 10-250g
Casing and filling proportion 1:9-10:0
Voltage 220V, single phase
Power 4.5kw
Dimension 4000*1650*1560mm
Weight 650KG



Automatic stuffed date bar machine  Fig Bar Making Machine 0

Stuffed protein bar making machine demo video:





Food produced by stuffed date bar making machine



Automatic stuffed date bar machine  Fig Bar Making Machine 1

Application:



Stuffed protein bar making machine video:





Stuffed date cookie bar making machine video:





Date paste bar making machine video:





Flat cookie bar making machine video:





Date roll making machiine video:





Double layers cookie bar making machine video:





Chocolate coated date paste bar production line video:





Optional device:



1. Automatic ball roller machine

The ball roller machine can be added in the date bar production line for make date ball, coconut date ball, coconut ball, energy ball, etc. The ball roller machine is a small sized and separated unit which can be easy moved, It is an ideal equipment for customer to develop ball products.



Automatic stuffed date bar machine  Fig Bar Making Machine 2

2. Automatic stamping machine

Automatic stamping machine can be added to the date bar production line for making mooncakes and maamouls. The stamping machine is a also small sized and separated unit, it just need custom made mould for stamping mooncakes or maamouls with different patterns. It is an ideal equipment for customer to develop mooncake and maamoul products.



Automatic stuffed date bar machine  Fig Bar Making Machine 3

3. coconut flake coating machine

Automatic stuffed date bar machine  Fig Bar Making Machine 4

Shanghai Papa Industrial Co.,LTD is a professional manufacturer for making the date bar machine, our date bar making machine is CE certificated and exported to whole world, especially to Europe and USA. Welcome to contact us if you want to know more details of our date bar extruder machine!
