Oatball making machine/Rolling machine
  • Oatball making machine/Rolling machine
  • Oatball making machine/Rolling machine
  • Oatball making machine/Rolling machine
  • Oatball making machine/Rolling machine
  • Oatball making machine/Rolling machine

Oatball making machine/Rolling machine

Place of Origin CHINA
Brand Name iPAPA
Certification CE
Model Number P160
Product Details
60-100 Pcs/min
Product Shape:
Ball Shape
Product Weight:
220V,Single Phase
Stainless Steel 304
1 Year
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Energy Ball, Protein Bar, Date Ball, Coconut Ball, Tamarind Ball,etc.
High Light:

Peanut Protein Ball Rolling Machine


Oat Balls Protein Ball Rolling Machine


P160 candy forming machine

Product Description

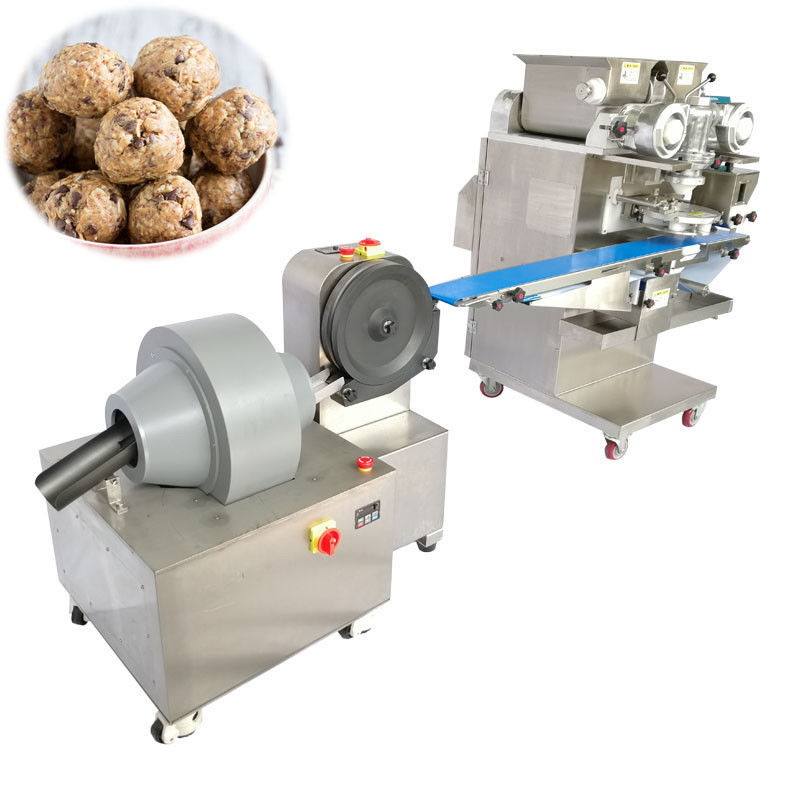

Oatball making machine/Rolling machine

Oatball making machine/Rolling machine of P160 Automatic encrusting machine, P160-Automatic energy ball rolling machine and P160-2 Coconut flakes coating machine.

Oatball making machine/Rolling machine for making both center filled balls and non-filled balls. There are two hoppers: left hopper for the dough casing and extrusion, the other right hopper for center fillng materials. The ball sizes can be changed by the extrusion nozzles.
Oatball making machine/Rolling machine is special made for rolling the dough into ball shape. The ball diameter range is 10mm-50mm. Protein Ball Machine Automatic Dates Ball Protein Ball Rounding Machine Manufacturer protein ball roller consists of stainless 304 structure and teflon coated aluminum rolling wheel. The rolling wheel need to be customized according to customer's ball diameter. It is easy to replace and operate.
The P160-2 Automatic coconut flakes coating machine inside is inserted a rotating drum with adjustable speed. The coconut flakes coating machine can coat coconut flakes, coco powder, grounded nuts, smashed nuts, seeds, and so on.
Oatball making machine/Rolling machine is flexible with each section can be separately used. Customer can take either one of them according to their needs.
If customer need to make center filled energy ball, he need to load the right hopper with ceter filling materials, which can be chocolate, jam, fruit paste, cream, peanut butter, etc. If customer need to make normal balls without stuffing, he just keep the right hopper empty or load it with the casing dough.
Oatball making machine/Rolling machine can make many kinds of ball products, such as energy ball, protein ball, date ball, coconut ball, bounty ball, bliss ball, rum ball, enery  bites, cookie dough ball, cookie dough bites, cake pops, chocolate ball, truffles, brigadeiro, tamarind ball, marzipan, bunelos, sesame ball, cheese ball, cheese nuggets, potato ball, ladoo, etc. The most often made is energy ball and coconut date ball, so the energy ball making machine is also called date ball making machine.

Model P160
Capacity 60-100 pcs/min
Product shape ball shape
Product weight 10-250g
Voltage 220V, single phase
Power 2.55kw
Dimension 2400*860*1300MM
Weight 380KG

Oatball making machine/Rolling machine 0
Center filled energy ball making machine demo video:

Center filled balls products produced by center filled energy ball making machine
Oatball making machine/Rolling machine 1
Non-filled ball products produced by center filled energy ball making machine:
Oatball making machine/Rolling machine 2
Peanut butter liquid filled energy ball making machine:

Chocolate filled date ball making machine video:

Coconut date ball rolling machine video:

Date paste and chocolate mixed date ball roller machine video:

Oatmeal ball rolling machine video:

tamarind ball making machine video:

P170 Double filling energy ball making machine:
Double filling furit jam filled date ball roller machine video:

Double color jam filled cookie dough ball making machine video:

Doubel filling chocolate and jam filled energy ball machine video:

Optional devices:

1. Automatic rotary table coating machine

The rotary table coating machine is used for large production of coconut flakes/sugar powder/coco powder/smashed nuts/chocolate sprinkles coated ball products or cookies. The dough ball cutted by the P160 Automatic encrusting machine will automatically drop to the rotary table coating machine for outside coating, then the coated products will transfered to the container or conveyor by the mesh belt.

Oatball making machine/Rolling machine 3

2. Automatic bar cutting machine

The automatic bar cutting machine is a separate machine controlled by PLC system with screen panel. It is placed right after the P160 Automatic encusting machine conveyor belt. The automatic bar cutting machine adopts teflon coated carbon steel cutting blade which vertically cut the food into pieces, the cutting speed and food length can be adjusted by control panel. The automatic bar cutting machine can make protein bar, fruit bar, filled date bar, round discs, date roll, cookies, etc.
Oatball making machine/Rolling machine 4

3. Chocolate enrober
Chocolate enrober is used for coat chocolate around food or on bottom of food, the commercial chocolate enrober machine is small sized and easy operation. Customer can choose to connect air fan cooling or tunnel cooling after the chocolate enrober machine. The chocolate enrober has different capacities for customer to choose.
Oatball making machine/Rolling machine 5

4. Planetary mixer
The multi-function high speed planetary mixer has a compact structure,with multi-function of egg whipping,stuffing homogenizing,and dough mixing. it is the essential equipment for materials mixing.
 Oatball making machine/Rolling machine 6
