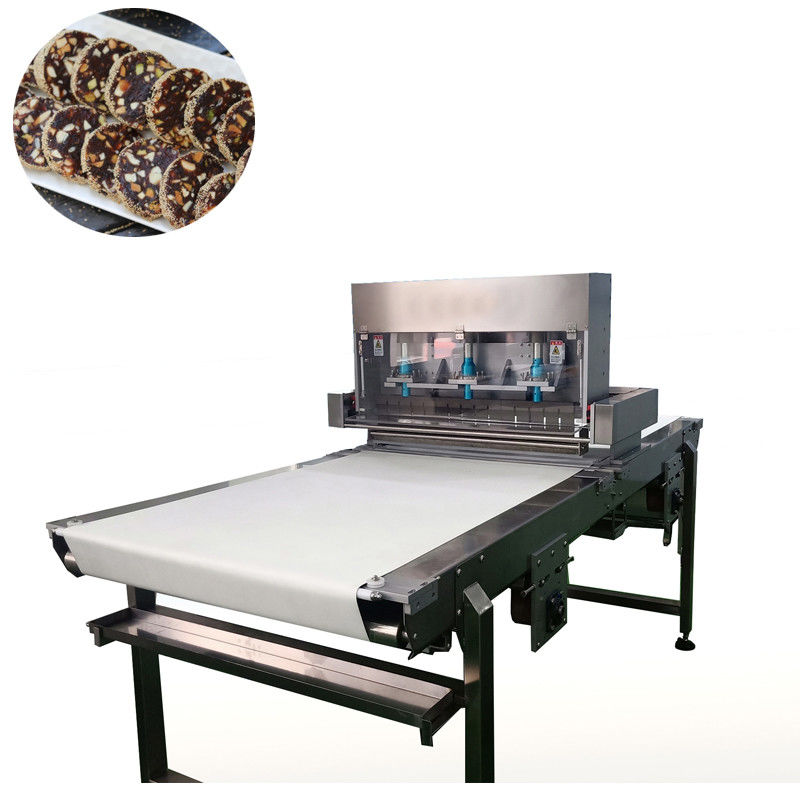

Automatic food ultrasonic cutter machine

Place of Origin CHINA
Brand Name iPAPA
Certification CE
Model Number 120
Product Details
Power:
5.5kw
Cutter Size:
120mm
Cutter Speed:
0-120 Times/min
Dimention:
2000*500*800mm
Weight:
100KG
Voltage:
220V,Single Phase
Material:
Stainless Steel 304
Warranty:
1 Year
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Condition:
New
High Light:

Automatic ultrasonic food cutting machine

,

ss304 ultrasonic food cutting machine

,

ultrasonic cake cutting machine

Product Description

Automatic food ultrasonic cutter machine



Description:

Automatic food ultrasonic cutter machine adopts ultrasonic cutting system to food production, During ultrasonic cutting, the cutting knife is doing ultrasonic vibration, the friction resistance is very small, and the material to be cut is not easy to stick to the blade. The food ultrasonic cutter machine has obvious cutting effect on frozen, viscous and elastic materials. It is especially effective for cutting food, rubber or objects that are inconvenient to apply pressure.



The food ultrasonic cutting machine can cut many kinds of food, such as cookies, wire cut cookies, icebox cookies, cakes, swiss rolls, sandwiches, energy bars, fruit bars, bread, etc. The ultrasonic cutting machine can match different food making machine for automatically food producing, For example, the ultrasonic cutting machine connect after the P160 Automatic encrusting machine for cutting cookies, connect the protein bar extruder for cutting fruit bars and protein bars, or coonect the slab bar forming machine for cutting cereal bars and granola bars.



The ultrasonic cutter machine size can be customized according to customer's product sizes, both the ultrasonic cutting blade and belt width can be custom-made.



Specifications:



Model 120
Cutter size  120mm
Cutter Speed 0-120 times/min
Belt speed 0-3000mm
Belt width 260mm
Ultrasonic frequency 20000HZ
Amplitude (of vibration) 20-100%
Voltage 220V, Single phase
Power 5.5kw
Dimension

2000*500*800mm

Weight 100KG



Automatic food ultrasonic cutter machine 0

Small ultrasonic cutting machine:

Automatic food ultrasonic cutter machine 1



Application:



Different kinds of food can be cut by the ultrasonic cutter machine:



Automatic food ultrasonic cutter machine 2



Ultrasonic cutter for energy bar video:





Ultrasonic cutter for cookie video:







Ultrasonic cutter for swiss roll video:







Ultrasonic cutter for bread video:







The food ultrasonic cutting machine is the ideal equipment for cutting the best quality food products, welcome to send us an inquiry if you are interested in our food ultrasonic cutter machine !
