P170 Spiral Type Cookie Biscuits Automatic Double Filling Encrusting Machine
  • P170 Spiral Type Cookie Biscuits Automatic Double Filling Encrusting Machine
  • P170 Spiral Type Cookie Biscuits Automatic Double Filling Encrusting Machine
  • P170 Spiral Type Cookie Biscuits Automatic Double Filling Encrusting Machine
  • P170 Spiral Type Cookie Biscuits Automatic Double Filling Encrusting Machine
  • P170 Spiral Type Cookie Biscuits Automatic Double Filling Encrusting Machine
  • P170 Spiral Type Cookie Biscuits Automatic Double Filling Encrusting Machine
  • P170 Spiral Type Cookie Biscuits Automatic Double Filling Encrusting Machine

P170 Spiral Type Cookie Biscuits Automatic Double Filling Encrusting Machine

Place of Origin CHINA
Brand Name iPAPA
Certification CE
Model Number P170
Product Details
Capacity:
20-80 Pcs/min
Product Shape:
Ball, Cone, Round Strip, Side Square, Terraced, Serrate, Etc
Product Weight:
10-270g
Casing And Filling Proportion:
1:9-10:0
Power:
2.15kw
Voltage:
220V,Single Phase
Dimention:
1670*920*1750 Mm
Weight:
320KG
Material:
Stainless Steel 304
Belt:
PU
Mould:
PE
Warranty:
1 Year
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Condition:
New
Application:
Bakery Food, Frozen Food, Confectionery, Savory, Other Snacks
High Light:

Spiral Double Filling Encrusting Machine

,

Double Filling Encrusting Machine

,

wire cut cookie depositor

Product Description

P170 Spiral Type Cookie Biscuits Automatic Double Filling Encrusting Machine



Description:



P170 Spiral type cookie biscuits automatic double filling encrusting machine is a upgraded model of the P160 Automatic Encrusting Machine. The P170 Spiral type double filling encrusting machine has total three feeding hoppers, each hopper is driven by double spirals. The third flat feeding hopper is installed on top of machine for making double filling food or double color filled food.



The P170 Spiral type double filling encrusting machine uses stainless steel 304 as the machine structure, and Taiwan brand as the electronics. It uses PE as the spiral and mould materials and PU as the conveyor belt. It is a fully automatic machine with PLC program and colorful screen panel.



P170 model has two types of machine: P170 Spiral type automatic double filling encrusting machine and P170 gear pump type automatic double filling encrusting machine. The spiral type uses three flat feeding hoppers for making most kinds stuffed and non-stuffed food, one filling and double filling food. The gear pump type is special designed for liquid filling like chocolate or jam.



Specifications:

Model P170
Capacity 20-80pcs/min
Product shape ball, cone, round strip, side square, terraced, serrate and etc.
Product weight 10-270g
Casing and filling proportion 1:9-10:0
Voltage 220V, single phase
Power 2.15kw
Dimension 1670*920*1750mm
Weight 320KG



P170 Spiral Type Cookie Biscuits Automatic Double Filling Encrusting Machine 0





P170 Spiral Type Cookie Biscuits Automatic Double Filling Encrusting Machine 1

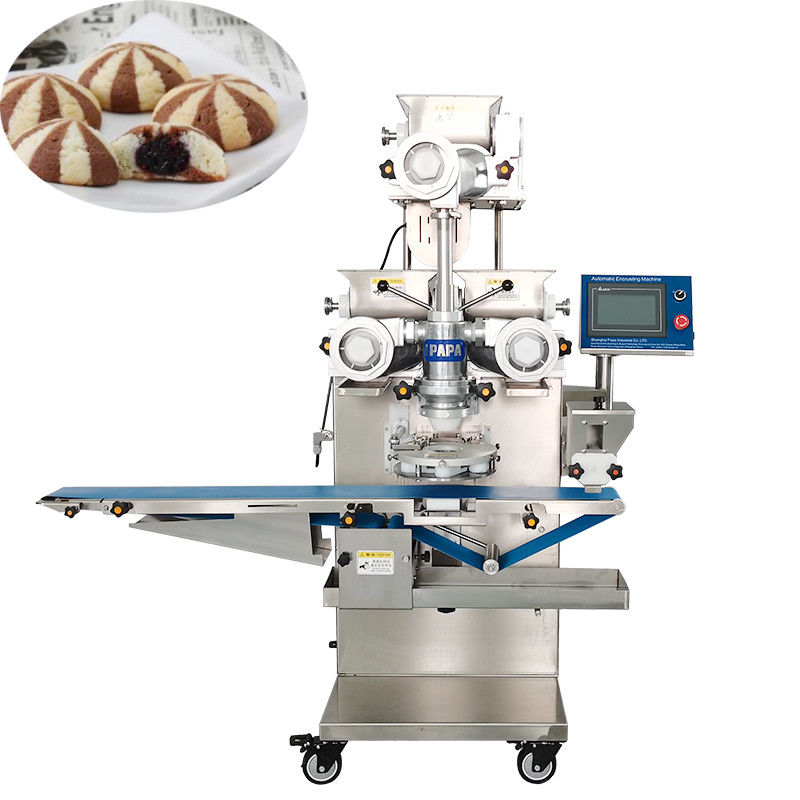

P170 Spiral type automatic double filling encrusting machine display:





Food produced by P170 Spiral type double filling encrusting machine:



P170 Spiral Type Cookie Biscuits Automatic Double Filling Encrusting Machine 2



P170 Spiral type double filling encrusting machine can also make below food:

P170 Spiral Type Cookie Biscuits Automatic Double Filling Encrusting Machine 3

Application:



Double filling encrusting machine for layer bar:





Double filling encrusting machine for cookies:





Double filling encrusting machine for mochi:





Gear pump type double filling encrusting machine for energy ball:







Optional devices:



1. Automatic bar cutting machine

Automatic bar cutting machine is often used for bar shape, cylinder shape, or disc shape products vertical cutting. The cutting speed can be adjusted according to customer's requirements.



P170 Spiral Type Cookie Biscuits Automatic Double Filling Encrusting Machine 4



2. Automatic ball roller machine

Automatic ball roller machine is normally used for ball shap product rolling and forming, the rolling wheel can be customized according to different ball sizes.



P170 Spiral Type Cookie Biscuits Automatic Double Filling Encrusting Machine 5



3. Automatic maamoul stamping machine

Automatic maamoul stamping machne or mooncake stamping machine is used for customized patterns stamping, like maamoul, mooncake, cookies, etc.

P170 Spiral Type Cookie Biscuits Automatic Double Filling Encrusting Machine 6



4. Automatic tray aligning machine

Automatic tray aligning machine is widely used after the automatic encrusting machine for food coolecting into trays automatically.

P170 Spiral Type Cookie Biscuits Automatic Double Filling Encrusting Machine 7



The P170 Spiral type double filling encrusting machine can make more kinds of stuffed food, the machine can be customized accoding to customer's requirements, welcome to contact us for more detailed information!
